Digital Solutions

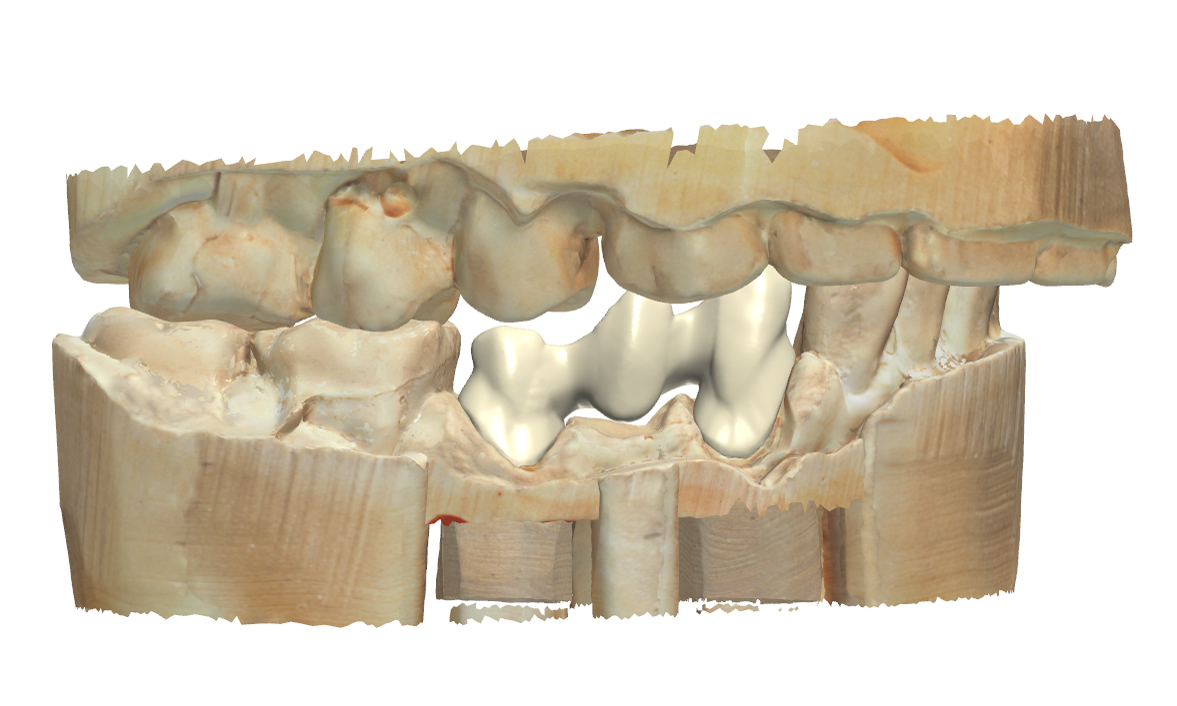

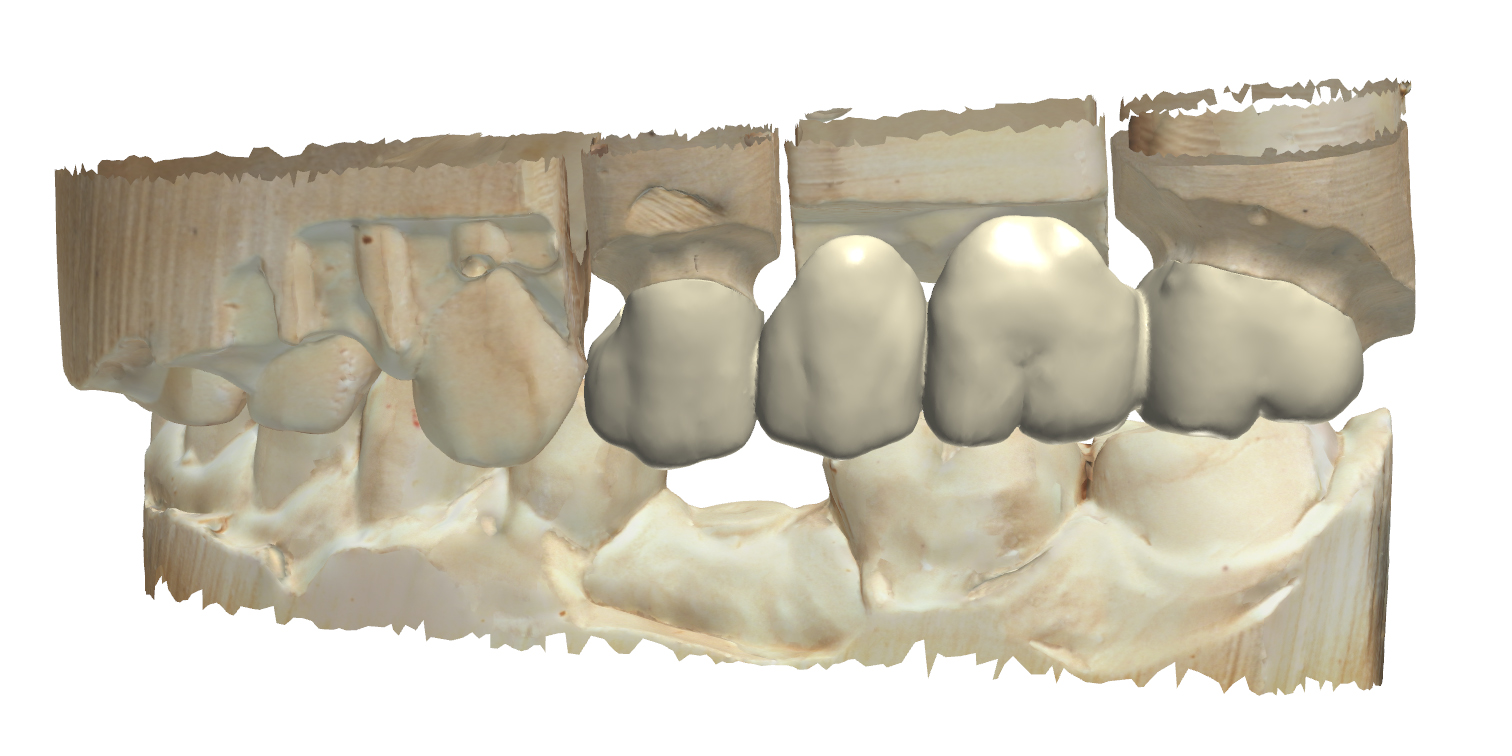

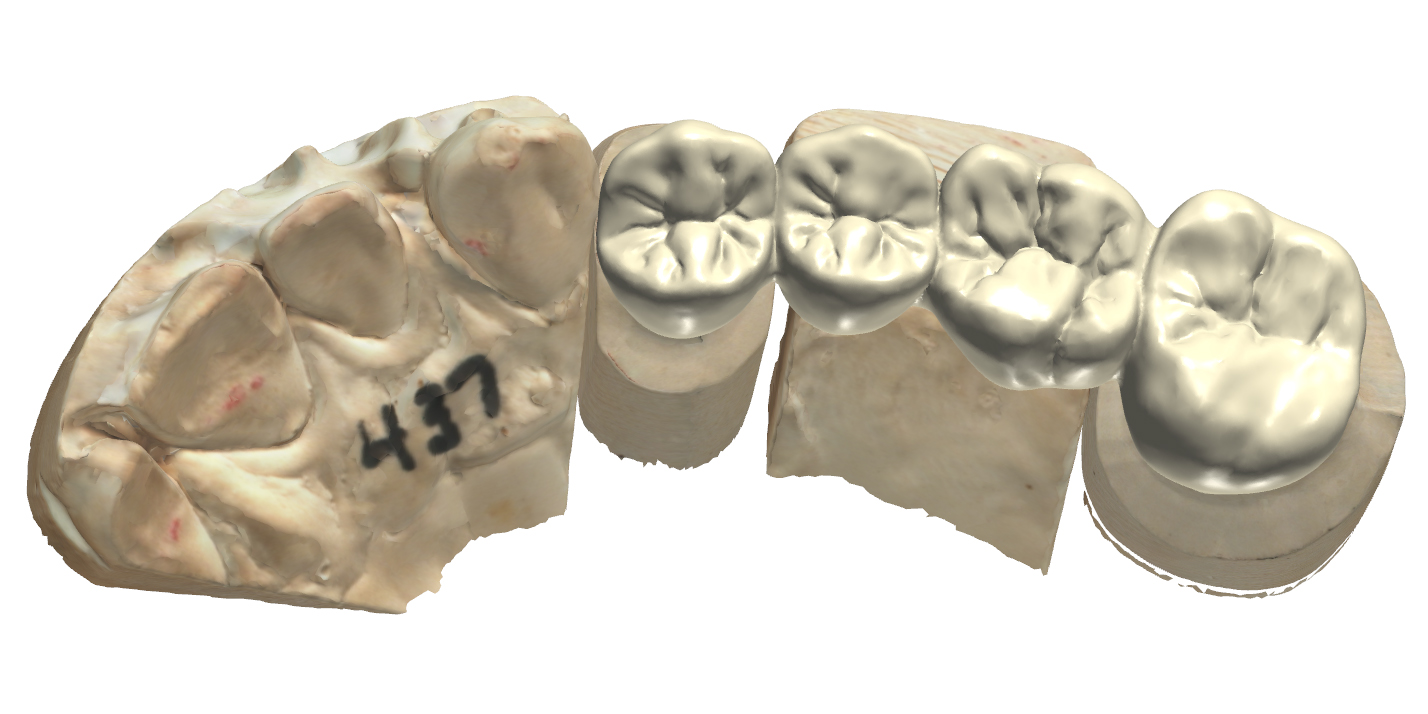

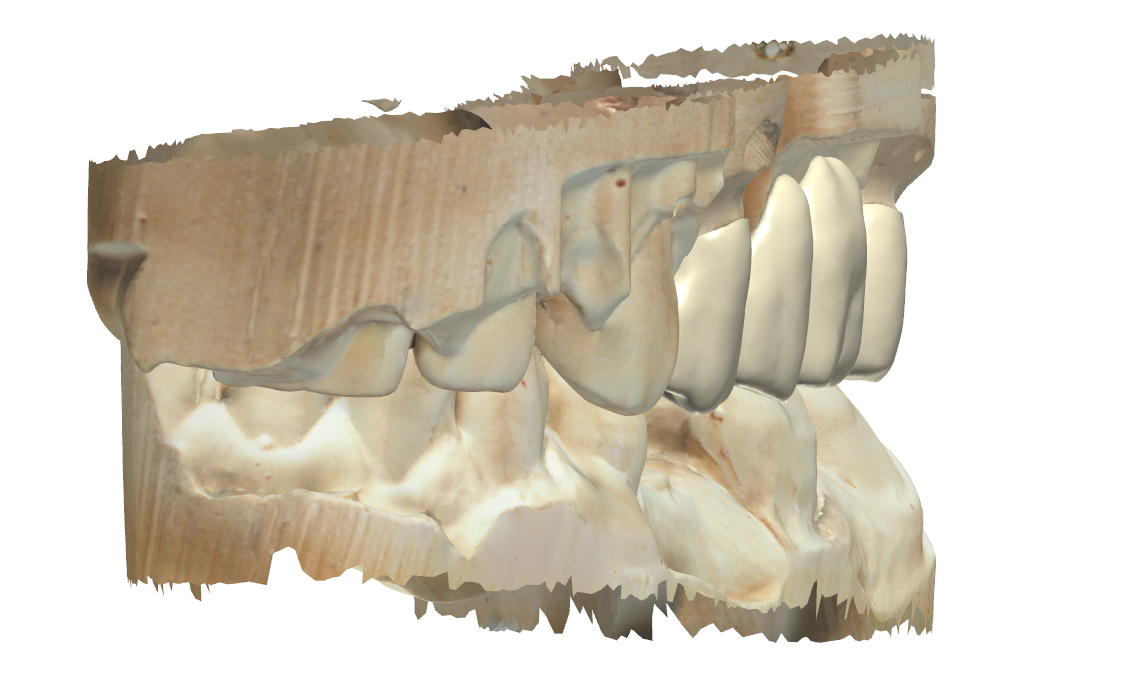

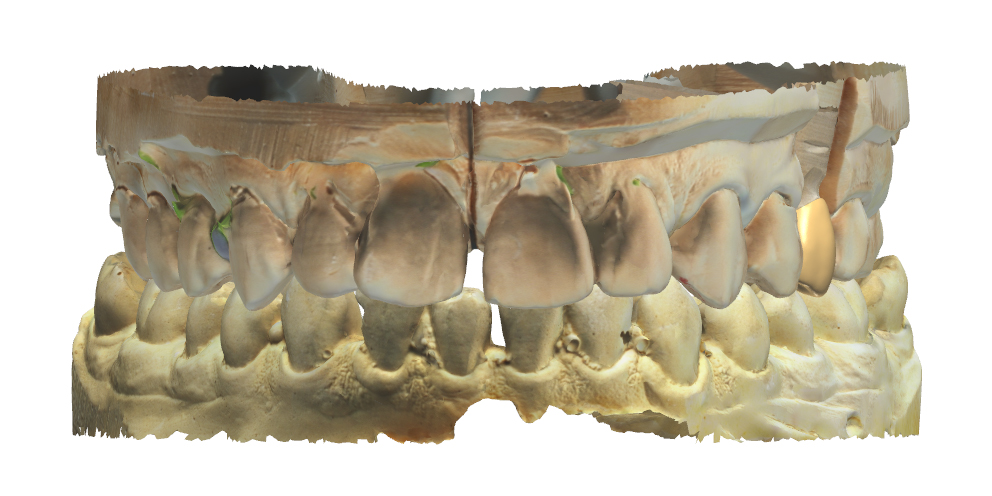

At Renstrom Dental Studio, we use the 3shape CAD/CAM systems to design 90% of our work. Our model room technicians create casts of the mouth and send it to our Digital Center. We scan in the casts with the 3shape D900 to create a detailed digital scan of the mouth. Our scanners provide life-like texture scans to provide the design technicians with more accuracy and detail. Our technicians pay close attention to doctor preferences and suggestions to provide a custom, esthetic crown for your patient.

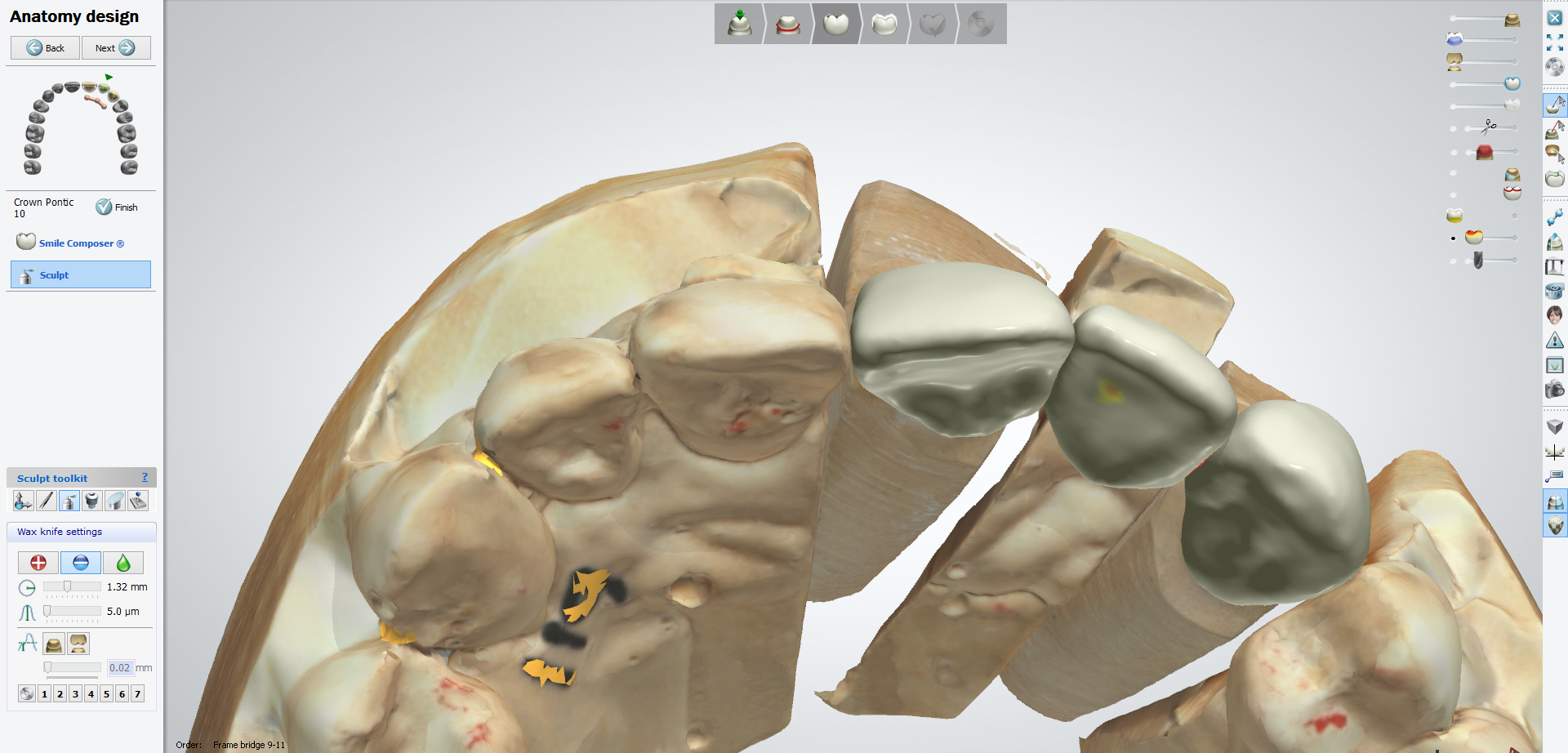

After scanning in the cast, our technicians use the DentalDesigner™ software to design each individual crown, bridge, framework, etc. We currently design crowns made of e.Max, gold, zirconia framework, full contour zirconia, screw retained implant crowns, provisionals, and implant abutments. Visit our Crown & Bridge or Implants & Abutments page to decide your material.

After the case is custom designed to the patients mouth, our technicians mill the crowns using our Roland DWX-50 5 axis milling machine to mill out your patients restorative crowns.

D900 Scanner Specifications:

4 Cameras with 5.0 Mega Pixel

Blue LED Light Technology

Accuracy Crown and Bridge: 7 microns

Accuracy Implant bars: 8 microns

Gypsum Model Scanning

Impression Scanning

Multi-Die Scanning

Texture Scanning

Single Die Scan Time: 15 seconds

Software: Dental System Premium

DIGITAL SOLUTIONS

3Shape D2000 Scanner Specifications:

  • 4 x 5 MP cameras, Blue LED Multi-line
  • Accuracy: 5 μm (ISO) / 8 μm (Implant bar)
  • Die scan time: 15 sec
  • Full arch scan time: 25 sec
  • Color texture scanning
  • No need for separate die scan *
  • All-in-one scanning: room for 2 models







At Renstrom Dental Studio, we use the 3shape CAD/CAM systems to design 90% of our work. Our model room technicians create casts of the mouth and send it to our Digital Center. We scan in the casts with the 3shape D900 to create a detailed digital scan of the mouth. Our scanners provide life-like texture scans to provide the design technicians with more accuracy and detail. Our technicians pay close attention to doctor preferences and suggestions to provide a custom, esthetic crown for your patient.

Zenotec Select Hybrid Mill

Zenotec Select Hybrid Mill

After scanning in the cast, our technicians use the DentalDesigner™ software to design each individual crown, bridge, framework, etc. We currently design crowns made of e.Max, gold, zirconia framework, full contour zirconia, screw retained implant crowns, provisionals, and implant abutments. Visit our Crown & Bridge or Implants & Abutments page to decide on your material.

Roland DWX-50 Mill

Roland DWX-50 Mill



After the case is custom designed, our technicians mill the restorations using the latest 5 axis mills. We have two Roland DWX-50 5 axis dry mills and a Wieland Zenotec Select Hybrid wet mill to handle a wide variety of milling needs

Click on the image to enlarge.
